Charging Communication

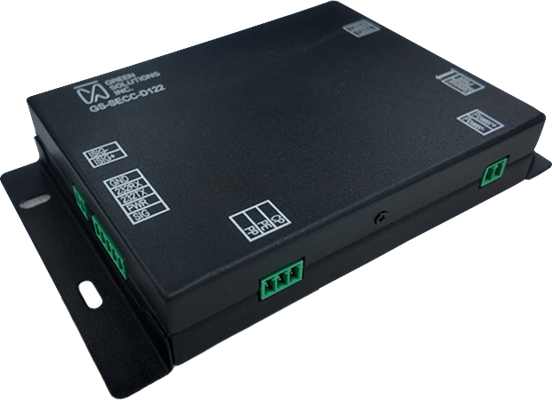

GS-SECC-D122
Parameters
  • Charging Standard
    CCS
  • Power Supply
    Typical power supply voltage 12/24VDC
    Input voltage range 9~26VDC
  • Power Consumption
    <2W
  • Size
    12090mm/10050mm (Customizable plate size)
  • External Communication Interface
    CAN, RS232
  • Operating Temperature Range
    -40~85℃
Features
  • Compact size, easy to integrate into DC charging piles of different power ratings.
  • High-performance STM H7 main control chip, capable of fulfilling network security TLS protocol calculations.
  • Supports PnC and EIM payment communication methods.
Charging Communication
GS-SECC-CCS-CH-GBT-IMD
Parameters
  • Charging Standard
     CCS, CHAdeMo 2.0 (Optional)
  • Power Supply
    Typical supply voltage 12/24VDC
    Input voltage range: 9~26VDC
  • Power Consumption
    <2W for CCS, Max. 40W for CHAdeMo
  • Size
    119*229mm
  • External Communication Interface
    CAN, RS232
  • Operating Temperature Range
    -40~85℃
Features
  • Supports CCS, CHAdeMo (Optional) communication protocols.
  • Supports PnC and EIM payment communication methods.
